Quick Specs

Temperature Range

-40°C to +80°C

Available Sizes

Sheets: 6-100mm thick | Rods: 6-150mm dia

Available in

Sheet | Rod

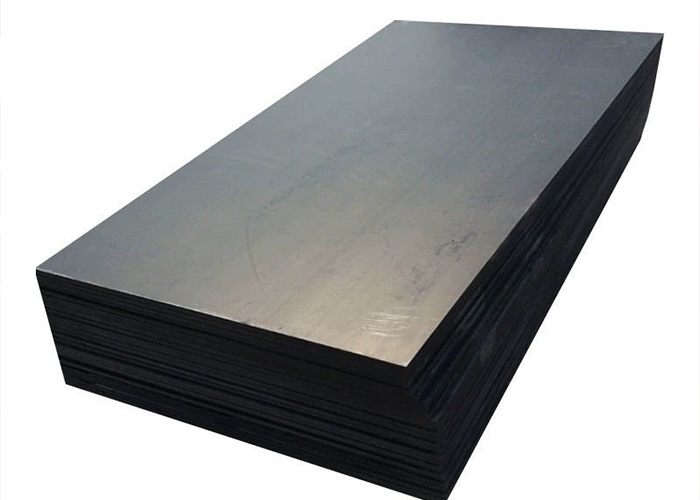

UHMW-PE (Ultra-High Molecular Weight Polyethylene)

Ultra-High Molecular Weight Polyethylene (UHMWPE) is a premium engineering plastic known for its exceptional strength, durability, and wear resistance. With a molecular weight significantly higher than standard polyethylene, UHMWPE offers superior impact strength, low friction coefficient, and outstanding resistance to abrasion and chemicals.

ESD+FR UHMWPE

Anti-static, flame-retardant polyethylene combining permanent surface resistivity with self-extinguishing properties and exceptional abrasion resistance.

Technical Specifications

Mechanical properties

Density	ASTM D792	g/cm3	0.96
Tensile yield strength	ASTM D638	Mpa	0.7±0.09
Breaking elongation	ASTM D638	%	50
Bending strength	ASTM D790	Mpa	680
Flexural modulus	ASTM D790	Mpa	20
Shore hardness	ASTM D2240	D	65
Impact strength	ASTM D256	J/M	200

Thermal Properties

Melting point	DSC	°C	130
Heat distortion temperature	ASTM D648	°C	50
Operating temperature	–	°C	80
Maximum operating temperature	–	°C	120
Thermal conductivity	DIN 52612-1	W/(K-M)	0.41
Coefficient of linear themal	ASTM D696	10-5-1/K	19

Electrical Properties

Dielectric strength	ASTM D150	kv-mm	45
Dielectric loss factor	ASTM D150	–	–
Volume resistivit	ASTM D257	Ω.cm	10¹²
Surface resistivity	ASTM D257	Ω	10¹²
Dielectric constant	ASTM D149	–	–

Chemical Properties

Water absorption	23°C 60%RH	%
Acid resistance	23°C 60%RH		+
Alkali resistance			+
Acid and alkali resistance			+
Resistance to sodium chlorate			+
Resistance to aromatic compounds			0
Resistance to ketone	23°C 60%RH		+
Resistance to hot water	23°C 60%RH		+

Others

Flammability	UL 94	HB
Viscosity	–	+
Non toxic	EEC 90/128 FDA	0
Coefficient of friction	DIN 53375	0.3
